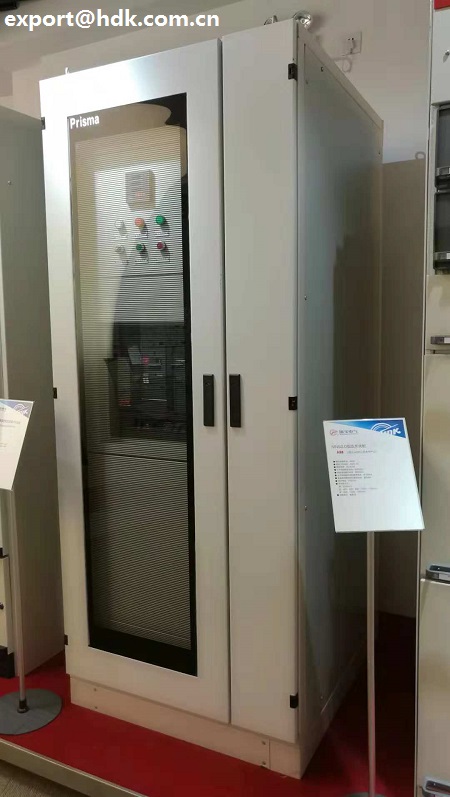

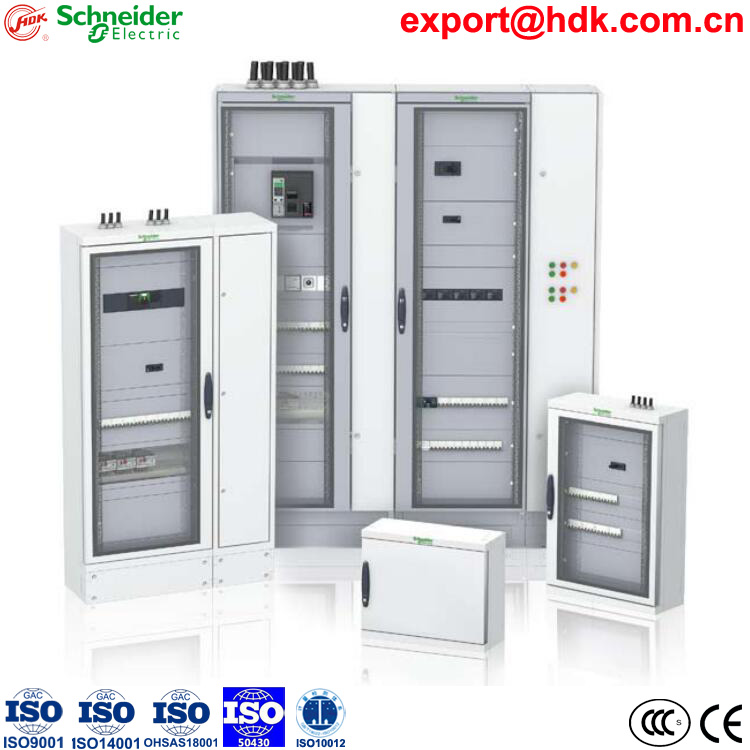

Schneider Prisma iPM seires low voltage switchgear.

● Model: Schneider Prisma

● Name: AC low voltage fixed partition switchgear

● Rated frequency: AC 50Hz / 60Hz;

● Rated voltage (Ue): 400V/ 690V;

● Rated insulation voltage(Ui): 1000V;

● Horizontal Busbar Rated current (Ir): 4000A;

● Vertical Bus Rated current (Ir): 4000A;

● Horizontal Busbar Short time withstand current (Icw) (4s): 30kA 50kA 85kA;

● Vertical Bus Short time withstand current (Icw) (4s): 30kA 50kA 85kA;

● Functional units: fixed partition type;

● Protect Degree: IP20~ IP54;

● Standard: IEC62271-200;

● Dimension: 2025H *700/ 900/ 1100W *400/ 600/ 800/ 1000D (mm)
