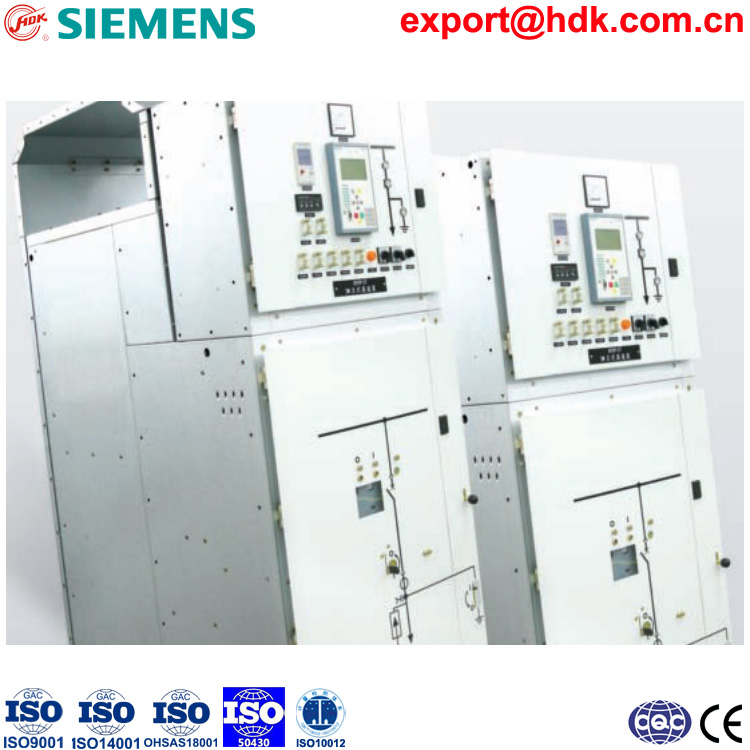

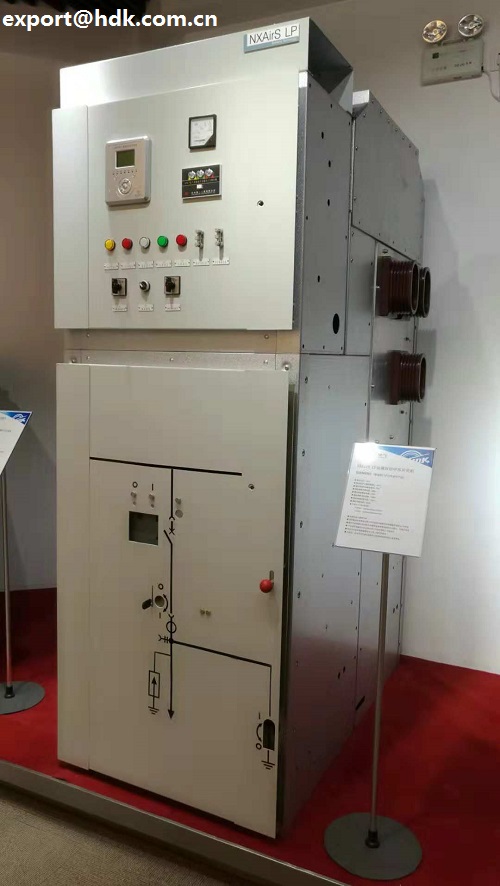

● Model: Siemens NXAirS LP

● Name: AC medium voltage metal enclosed switchgear

● Rated voltage (Ue): 12kV;

● Power frequency withstand voltage (1min): 42/48kV;

● Rated impulse withstand voltage (Uimp): 75/85kV;

● Rated busbar current (Ir): 4000A;

● Short time withstand current (Icw) (4s): 40kA;

● Short circuit drop-out current: 40kA;

● Short circuit making current (4s): 100kA;

● Peak withstand current: 100kA;

● Protect Degree: IP40, door open IP2x;

● Standard: IEC62271-200;

● Dimension: ≦2500A 2200H *800W *1350D (mm) ≧3150A 2300*1000*1450
