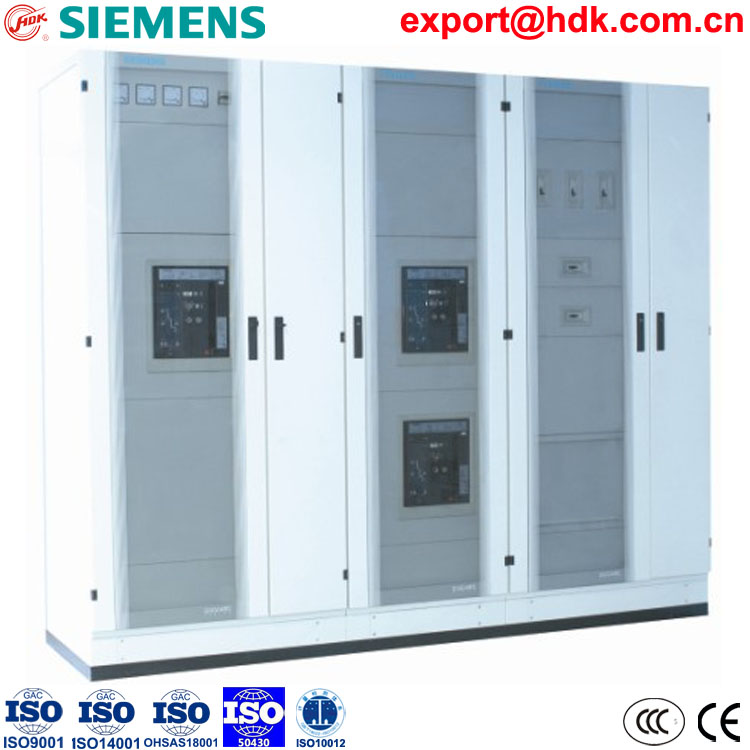

SIEMENS cooperated SIKUS Low-Voltage switchgear cabinet.

● Model: SIEMENS Sikus

● Name: AC low voltage fixed partition type switchgear

● Rated frequency: AC 50Hz / 60Hz;

● Rated voltage (Ue): 400V;

● Rated insulation voltage(Ui): 690V;

● Horizontal Busbar Rated current (Ir): 6400A;

● Vertical Bus Rated current (Ir): 3200A;

● Horizontal Busbar Short time withstand current (Icw): 100kA(1s);

● Vertical Bus Short time withstand current (Icw): 100kA(1s);

● Functional units: fixed partition type;

● Protect Degree: IP30/ IP41;

● Standard: IEC62271-200;

● Dimension: 2200/ 2300H *700/ 1000W *600/ 800/ 1000D (mm)
